Alvin's Vertical Screw Lock CAT6a GigE Cable for Industrial Cameras

Brand Name:	Alvin's Cables
Model Number:	M12 4 Pin to RJ45 Industrial Ethernet Cable
MOQ:	1
Price:	$9~$34.99
Packaging Details:	Box
Payment Terms:	T/T, Western Union, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cable Length:

3m/9.84ft

Compatible Brand:

Cognex Industrial Camera 6.6ft

Color:

Black

Plug A:

Down-Angle RJ45 Male With Thumbscrews

Plug B:

Straight RJ45 Male

Supply Ability:

10000pcs/month

Highlight:

Industrial Cameras CAT6a GigE Cable

Vertical Screw Lock CAT6a GigE Cable

Product Description

Alvin's Industrial CAT6A GigE Vision Cable with Down-Angle Screw-Lock

Core Specifications:

Industrial-Grade Shielding & Durability:
- Double-Layer SF/UTP Shield: Aluminum foil + braided mesh for EMI/RFI protection in high-interference environments (e.g., robotic cells).
- IP67 Rated: Resists chemicals, oils, and flames (-25°C to 85°C operating range).
- Drag-Chain High-Flex Design: Withstands >1 million bending cycles for robotic/AGV applications.
Connector Technology:

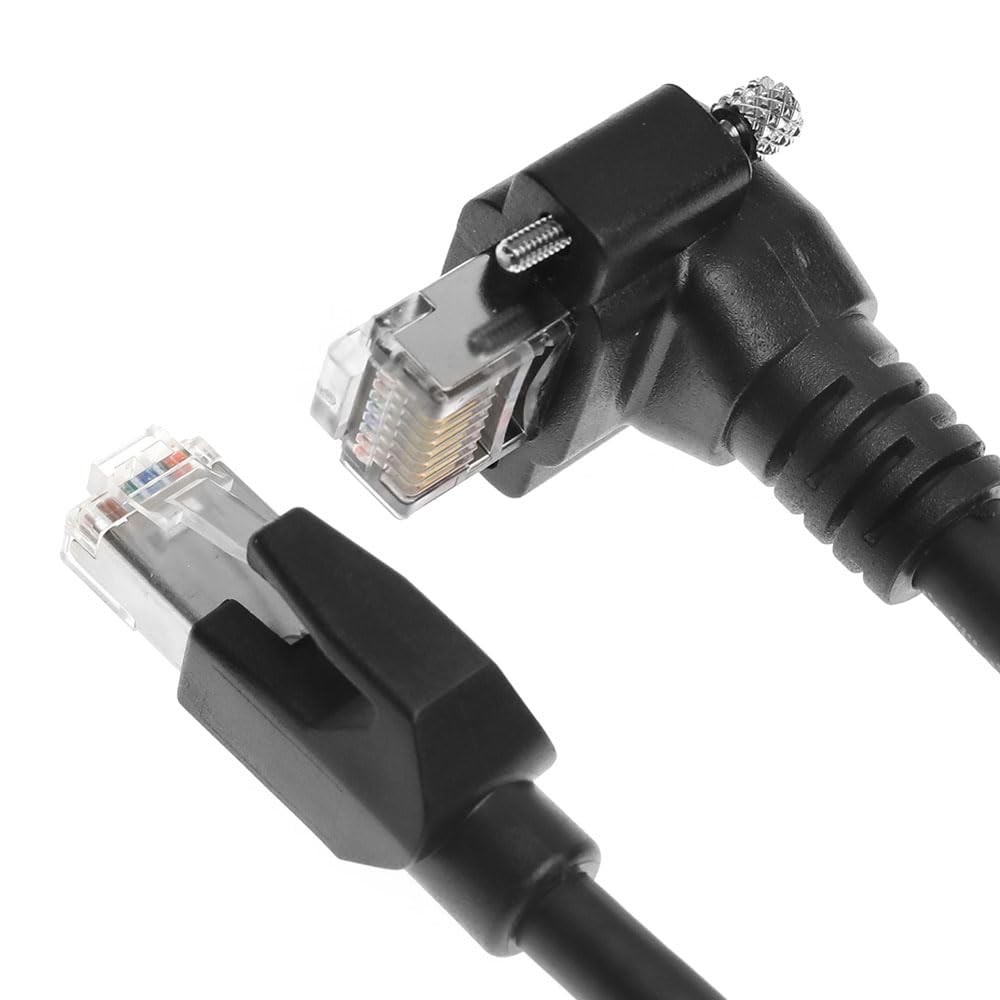

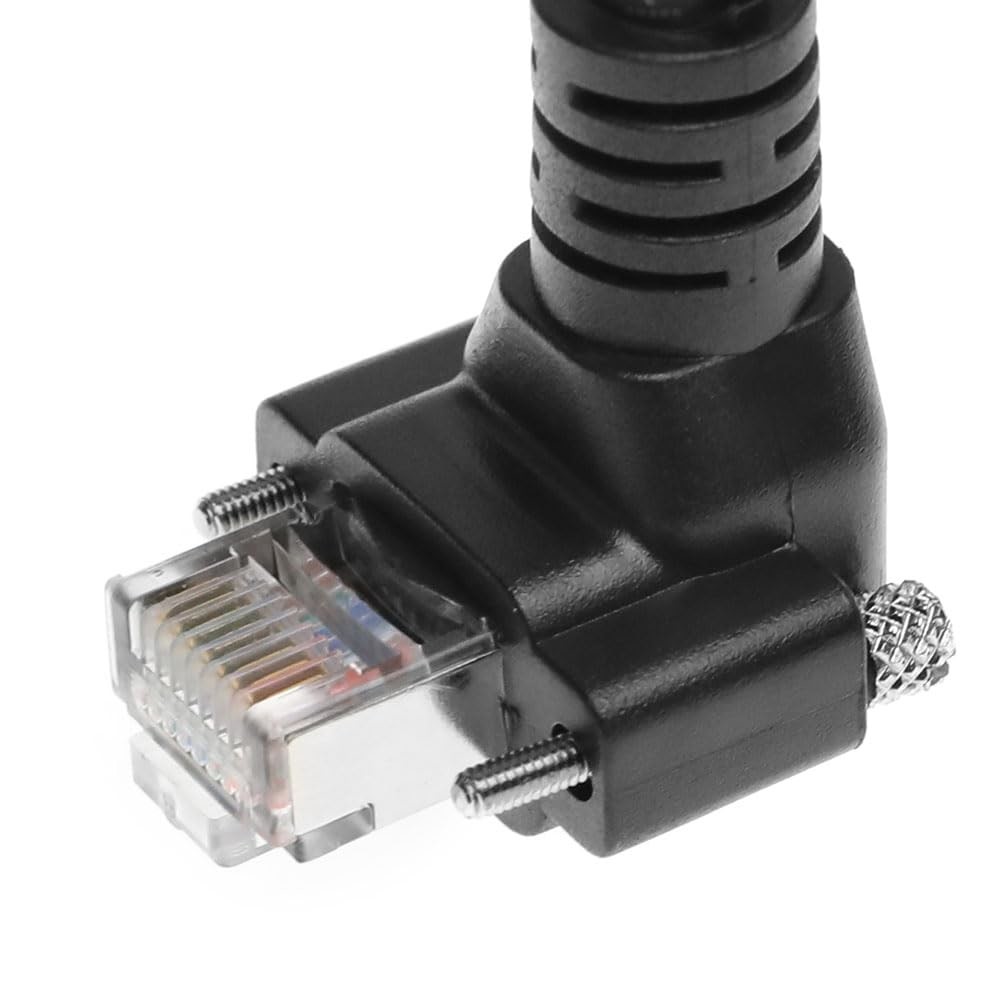

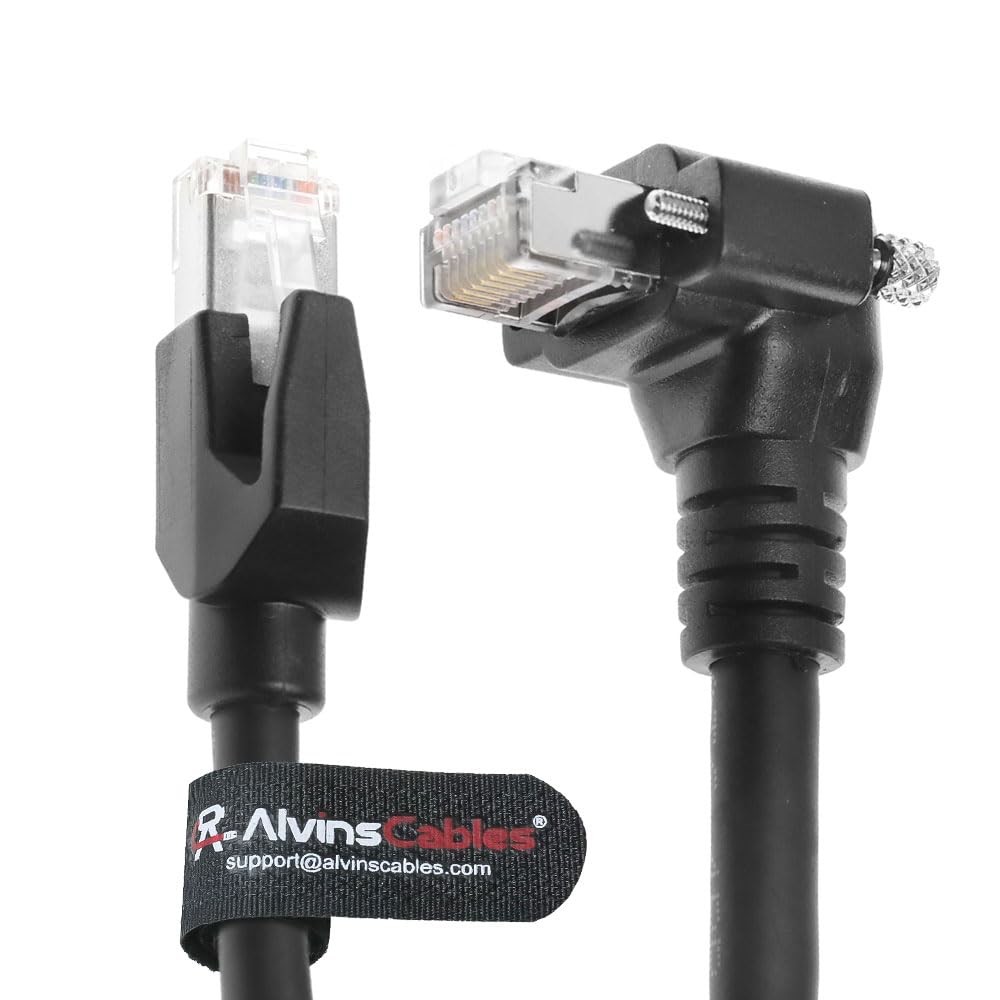

- Plug A: Down-Angle Screw-Lock RJ45 Male (90° downward)
  - Anti-vibration thumbscrews secure connections in motion systems.
  - Space-saving profile prevents bending stress in tight racks/servers.
- Plug B: Straight RJ45 Male (Standard orientation).
Performance & Compatibility:
- 10 Gbps Speed: Compliant with CAT6A standards (500 MHz bandwidth).
- PoE++ Support: Delivers up to 90W (802.3bt) for powered cameras/PLCs.
- Machine Vision Compatibility:
  - Cognex In-Sight | Keyence CV-X | Basler ace
  - Hikvision | Dahua | IDS/DAHENG/Allied Vision.
Configuration:
- Length: 3m (9.84 ft) standard.
- Customization: Available upon request (contact pre-order).

Technical Validation:

✅ Shielding Superiority :
SF/UTP construction exceeds UTP cables in:

Noise rejection (critical for CCD imaging)
Signal integrity at 10Gbps
Grounding stability in PLC cabinets

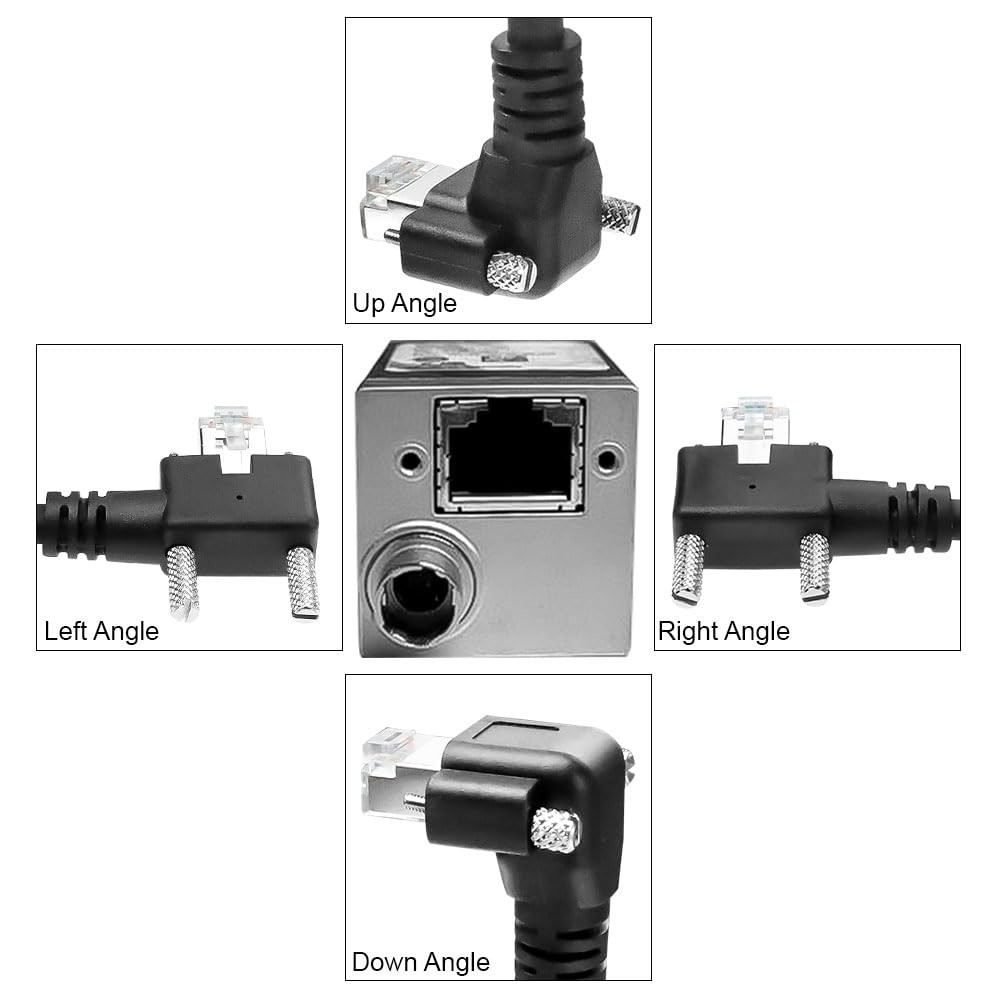

✅ Down-Angle Advantage :
Downward connectors optimize routing in:

Robotic arm joints (avoiding snag points)
Server racks (vertical cable management)
AGV docking stations (low-clearance areas)

✅ Industrial Certification Alignment:

IEC 61156-5:2020 Class EA (500MHz)
Exceeds TIA CAT6A crosstalk limits

Design Highlights:

Feature	Industrial Benefit
SF/UTP Shielding	Eliminates EMI from servo motors/VFDs
IP67 Rating	Survives washdown/outdoor environments
-25°C~85°C Range	Stable in foundries/freezer warehouses
High-Flex Insulation	10x longer lifespan vs. standard PVC
