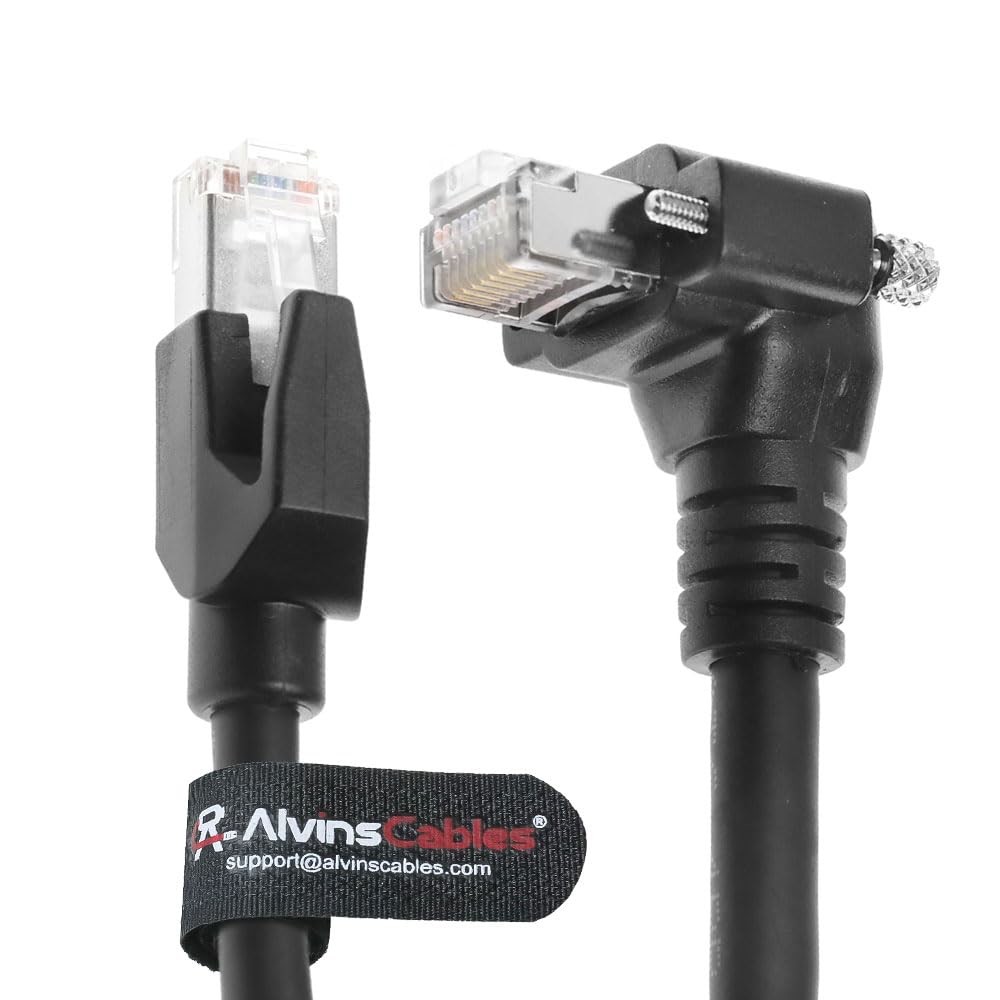

Alvin's Industrial CAT6A GigE Vision Cable with Down-Angle Screw-Lock
Core Specifications:
Industrial-Grade Shielding & Durability:
Double-Layer SF/UTP Shield: Aluminum foil + braided mesh for EMI/RFI protection in high-interference environments (e.g., robotic cells).
IP67 Rated: Resists chemicals, oils, and flames (-25°C to 85°C operating range).
Drag-Chain High-Flex Design: Withstands >1 million bending cycles for robotic/AGV applications.
Connector Technology:

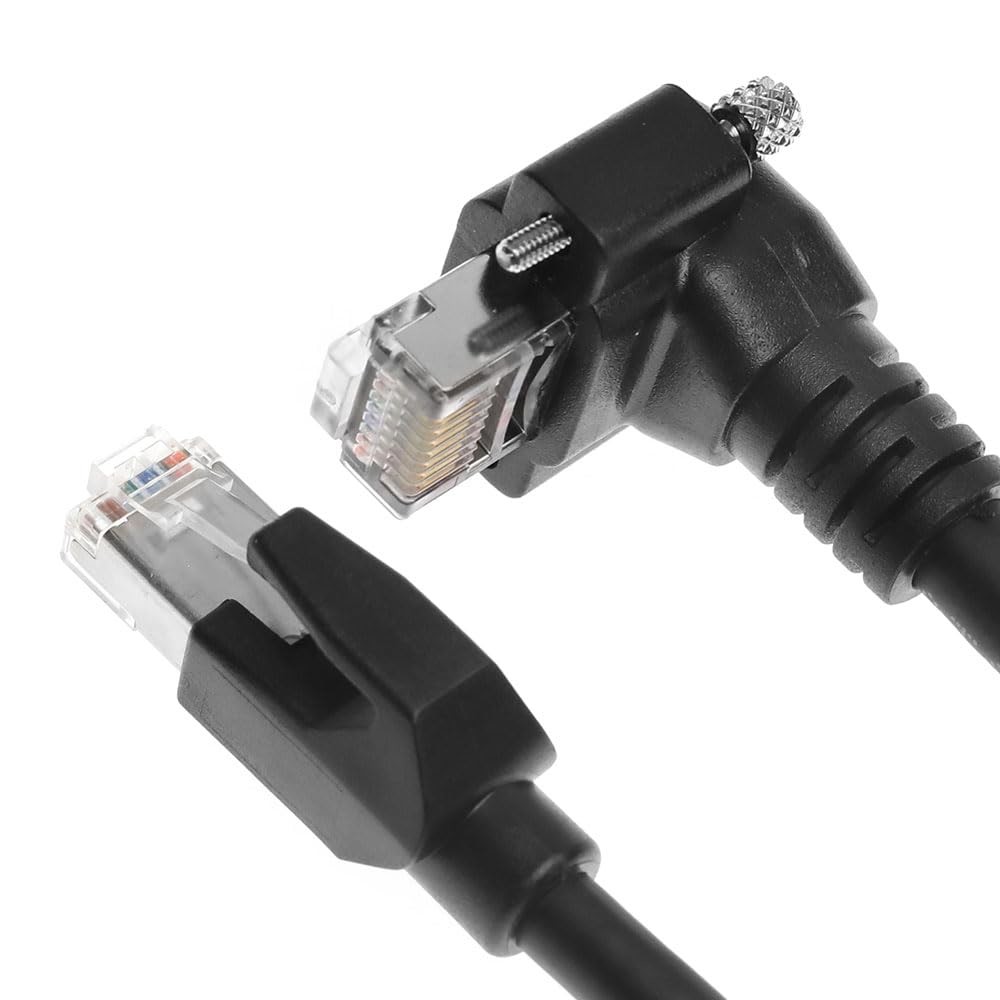

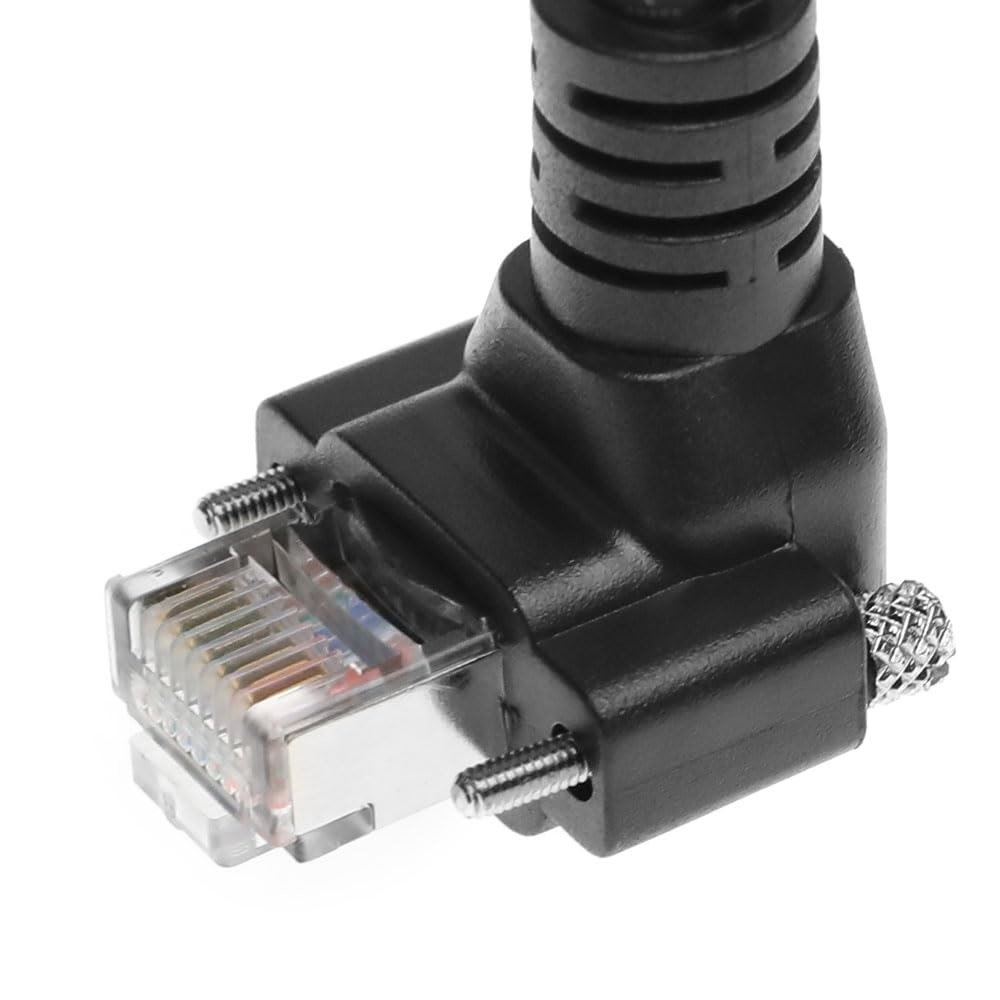

Plug A: Down-Angle Screw-Lock RJ45 Male (90° downward)
Anti-vibration thumbscrews secure connections in motion systems.
Space-saving profile prevents bending stress in tight racks/servers.
Plug B: Straight RJ45 Male (Standard orientation).
Performance & Compatibility:
10 Gbps Speed: Compliant with CAT6A standards (500 MHz bandwidth).
PoE++ Support: Delivers up to 90W (802.3bt) for powered cameras/PLCs.
Machine Vision Compatibility:
Cognex In-Sight | Keyence CV-X | Basler ace
Hikvision | Dahua | IDS/DAHENG/Allied Vision.
Configuration:

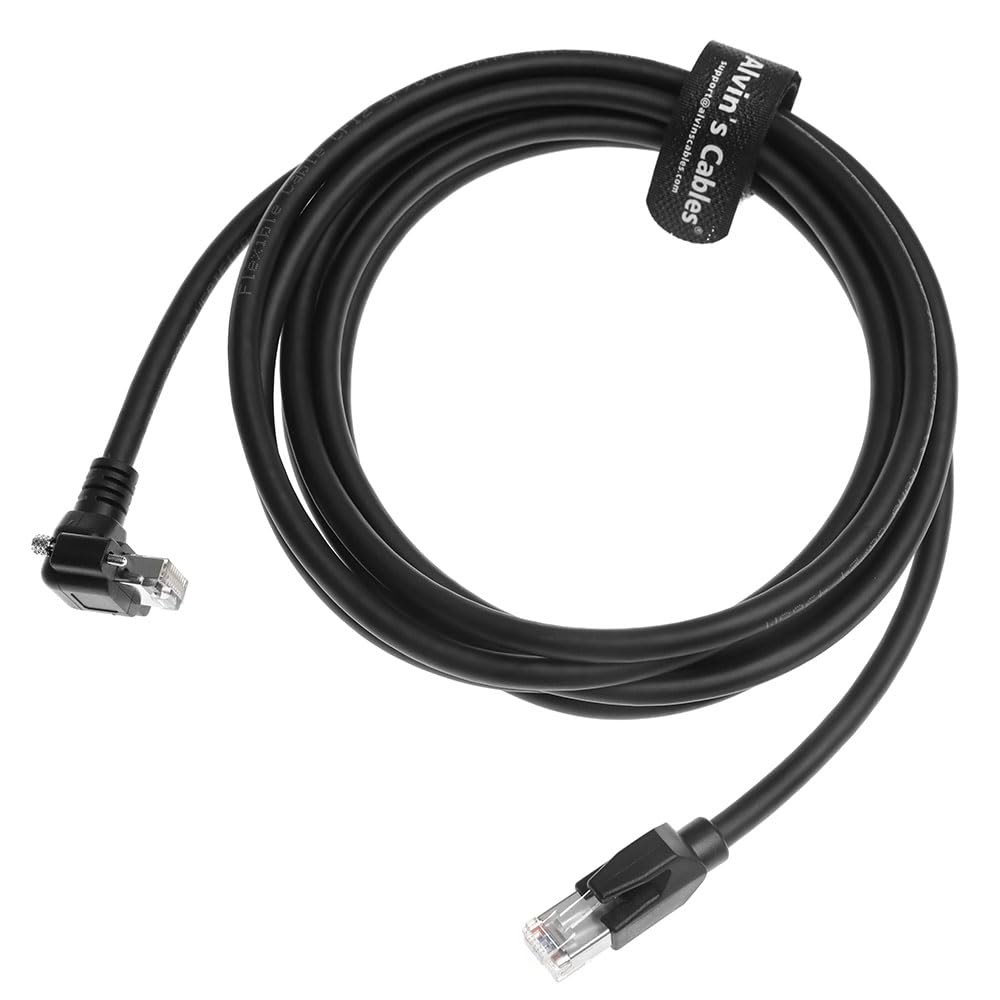

Length: 3m (9.84 ft) standard.
Customization: Available upon request (contact pre-order).
Technical Validation:
✅ Shielding Superiority :
SF/UTP construction exceeds UTP cables in:
Noise rejection (critical for CCD imaging)
Signal integrity at 10Gbps
Grounding stability in PLC cabinets

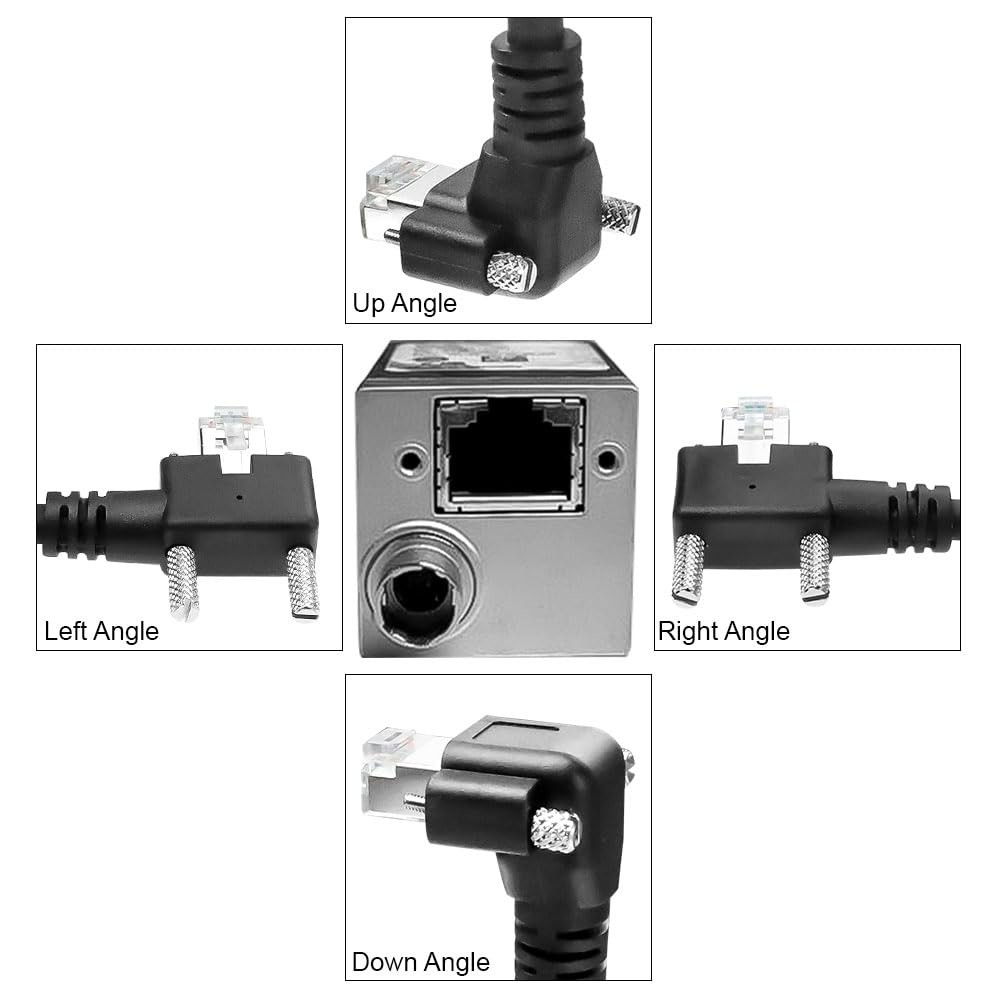

✅ Down-Angle Advantage :
Downward connectors optimize routing in:
Robotic arm joints (avoiding snag points)
Server racks (vertical cable management)
AGV docking stations (low-clearance areas)
✅ Industrial Certification Alignment:
IEC 61156-5:2020 Class EA (500MHz)
Exceeds TIA CAT6A crosstalk limits
Design Highlights:
Feature Industrial Benefit
SF/UTP Shielding Eliminates EMI from servo motors/VFDs
IP67 Rating Survives washdown/outdoor environments
-25°C~85°C Range Stable in foundries/freezer warehouses
High-Flex Insulation 10x longer lifespan vs. standard PVC
⚡ Pro Tip: For PoE++ deployments (e.g., AGV charging docks), use ≥90W PSE switches to prevent voltage drop over 3m runs.
