Alvin's Industrial CAT6A GigE Vision Cable with Down-Angle Screw-Lock
Core Specifications:
Industrial-Grade Shielding & Durability:
Double-Layer SF/UTP Shield: Aluminum foil + braided mesh for superior EMI/RFI protection in high-interference environments (e.g., robotic cells, PLC cabinets). Exceeds UTP performance in noise rejection and signal integrity.
IP67 Rated: Resists chemicals, oils, and flames. Operating range: -25°C to 85°C (ideal for freezer warehouses or foundries).
Drag-Chain High-Flex Design: Withstands >1 million bending cycles. High-flex insulation extends service life 10x vs. standard PVC.
Connector Technology:

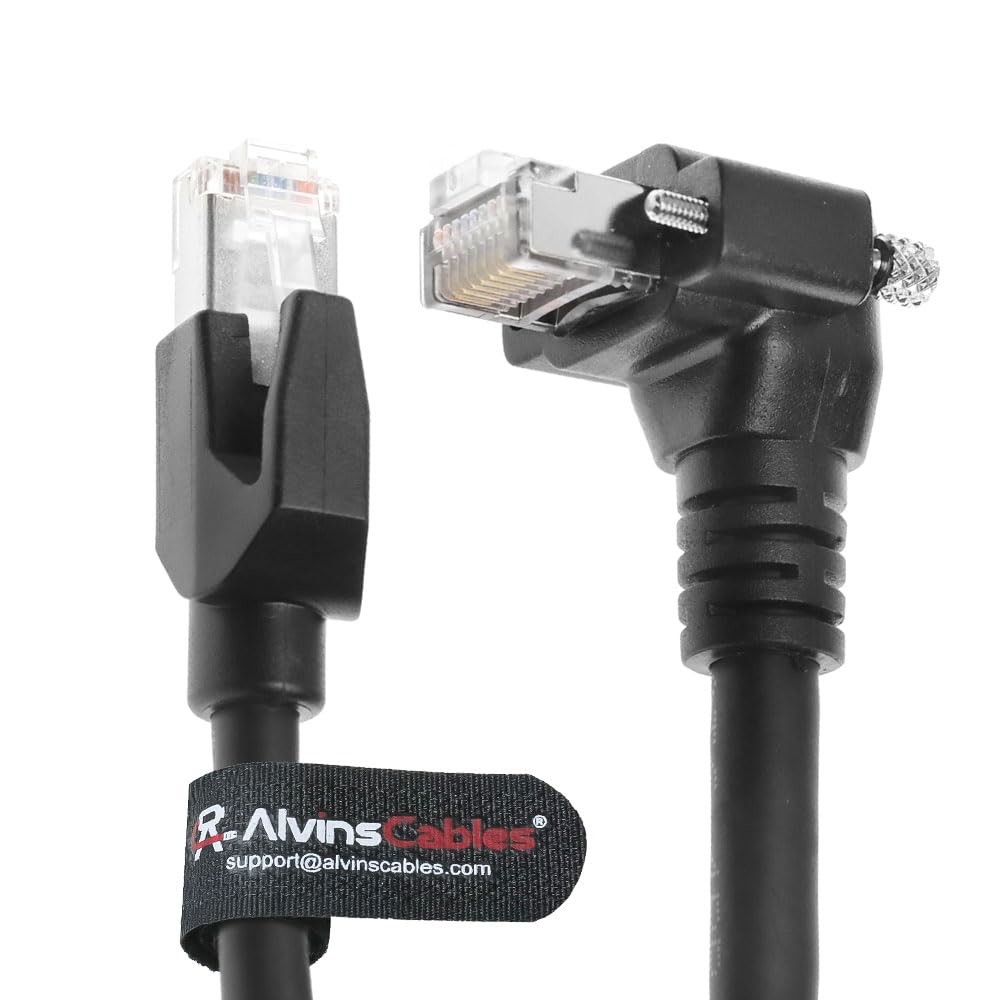

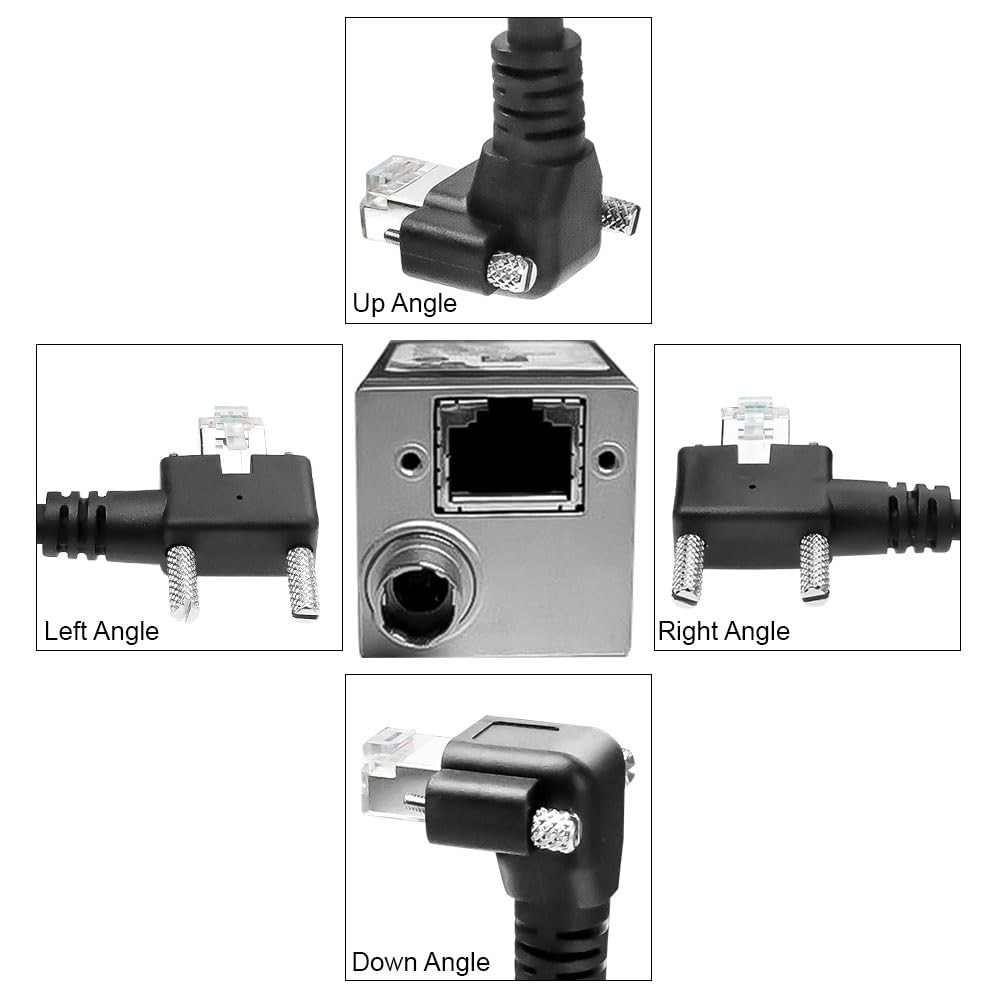

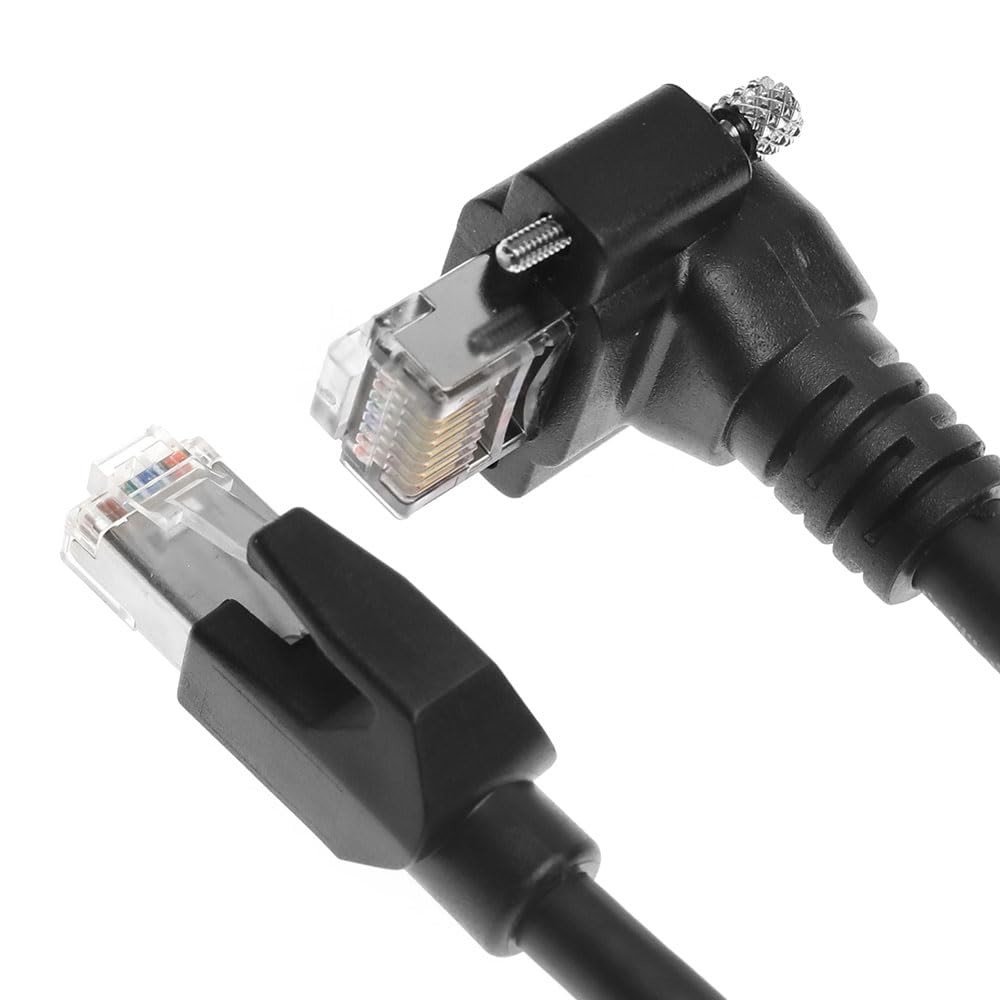

Plug A: Down-Angle Screw-Lock RJ45 Male (90° downward)

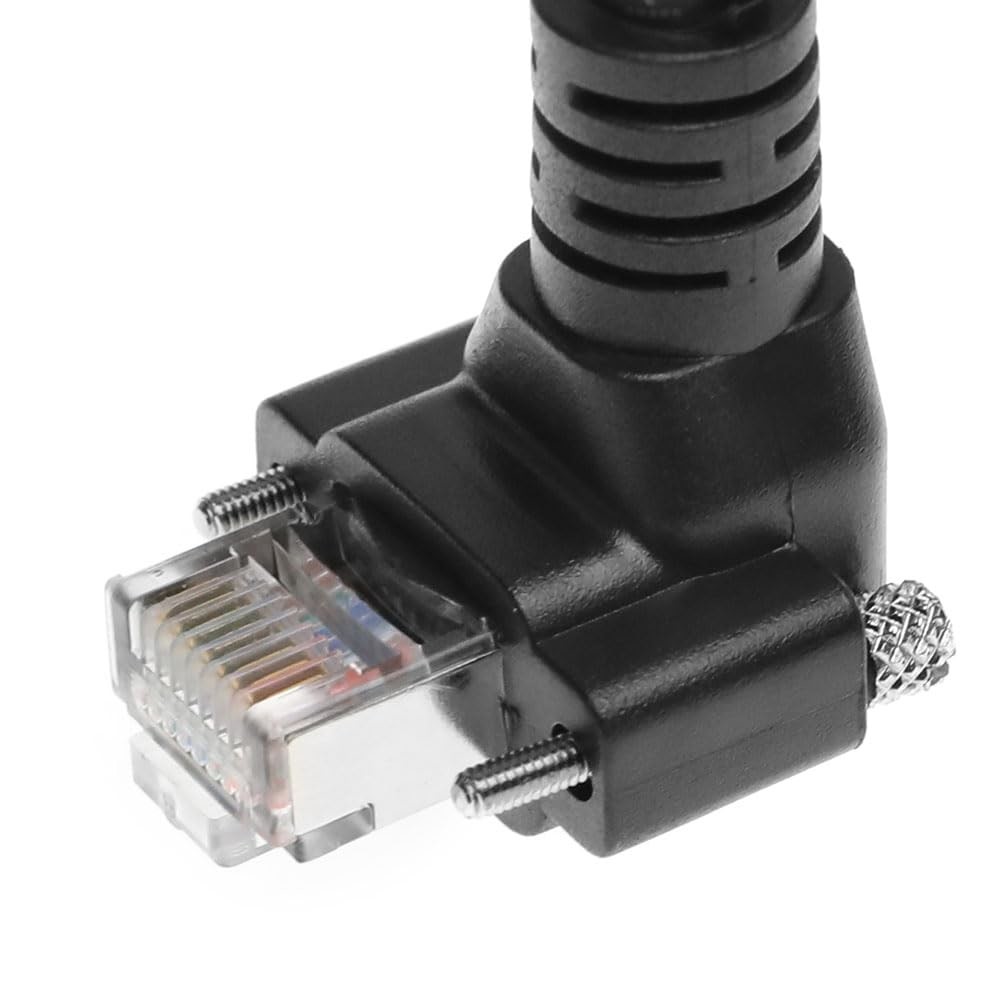

Anti-vibration thumbscrews prevent disconnection in high-motion systems (e.g., AGVs, industrial robots).
Space-saving profile reduces bending stress in tight racks/servers.
Plug B: Straight RJ45 Male (Standard orientation). Gold-plated contacts ensure low-latency connectivity.
Performance & Compatibility:
10 Gbps Speed: Compliant with CAT6A standards (500 MHz bandwidth), supporting high-definition image data transmission.
PoE++ Support: Delivers up to 90W (IEEE 802.3bt) for powered cameras and PLCs.
Machine Vision Compatibility:
Cognex In-Sight | Keyence CV-X | Basler ace
Hikvision | Dahua | IDS/DAHENG/Allied Vision.
Broad Application Suitability: CCD cameras, data centers, servers, and industrial cabling.
Configuration:

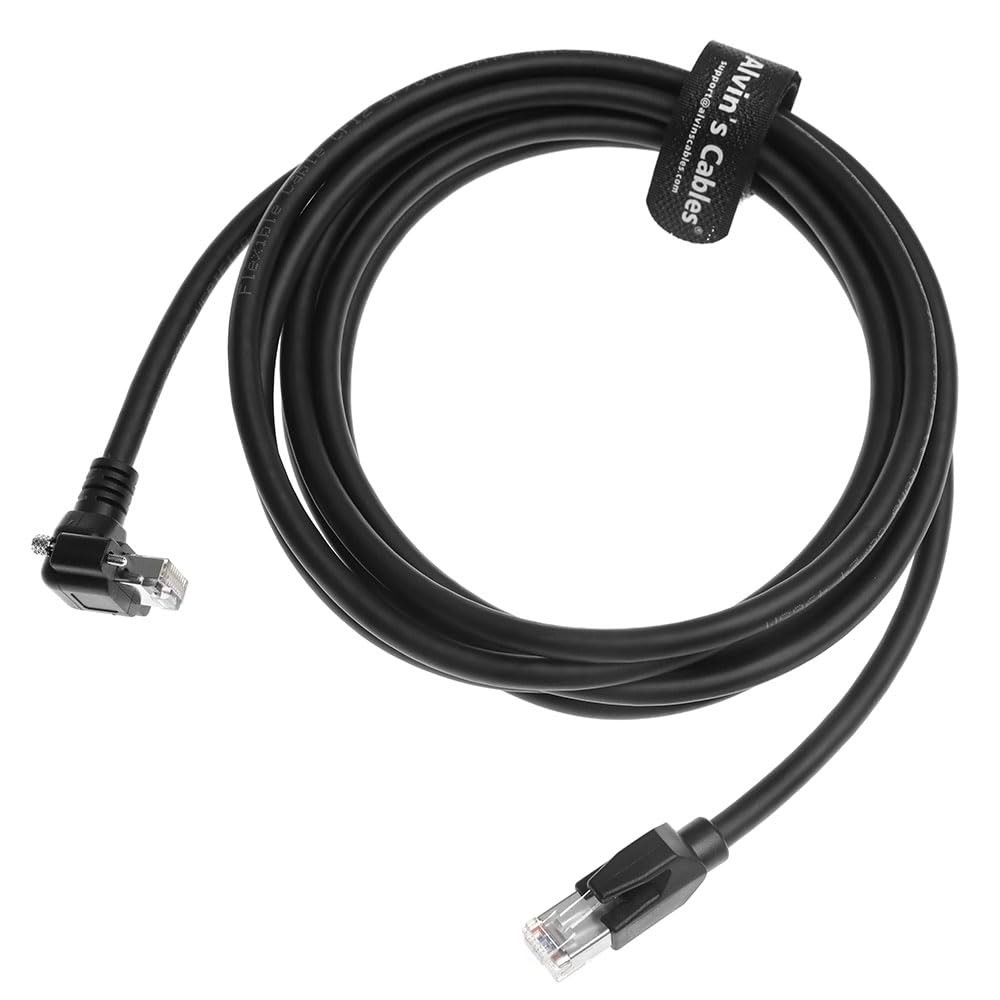

Length: 20m (65.6 ft) standard.
Customization: Available for other lengths (contact pre-order).
Technical Validation
✅ Shielding Superiority :
SF/UTP construction eliminates EMI from servo motors/VFDs, critical for stable 10Gbps transmission in vision systems. Validated under IEC 61156-5:2020 for 500MHz bandwidth.
✅ Down-Angle Connector Advantage :
Screw-lock design resists 5G vibration (per ISO 10816-3), reducing failure rates in:
Robotic arms (prevents snagging)
AGV docking stations (low-clearance optimization)
Server racks (vertical cable management)
✅ PoE++ Optimization :
Supports 802.3bt (90W) for high-power devices like thermal cameras. For 20m runs, use ≥90W PSE switches to avoid voltage drop.
Design Highlights
Feature Industrial Benefit
SF/UTP Shielding Neutralizes EMI from industrial motors and RF sources
IP67 Rating Survives washdowns, outdoor exposure, and chemical spills
-25°C~85°C Range Reliable in extreme environments (e.g., automotive testing, cold storage)
High-Flex Insulation Reduces maintenance in drag-chain applications (e.g., assembly lines)
⚡ Pro Tip: For AGV or robot deployments, pair with shielded RJ45 ports (e.g., industrial switches) to maximize EMI protection.
