| Place of Origin: | China |
|---|---|
| Brand Name: | Alvin's Cables |
| Model Number: | M12 4 Pin to RJ45 Industrial Ethernet Cable |
| Minimum Order Quantity: | 1 |
| Price: | $9~$34.99 |
| Packaging Details: | Box |
| Delivery Time: | 1~3 business days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000pcs/month |
| Cable Length: | 3m/9.84ft | Compatible Brand: | Cognex Industrial Camera 6.6ft |
|---|---|---|---|
| Color: | Black | Plug A: | Up-angle RJ45 Male With Thumbscrews |

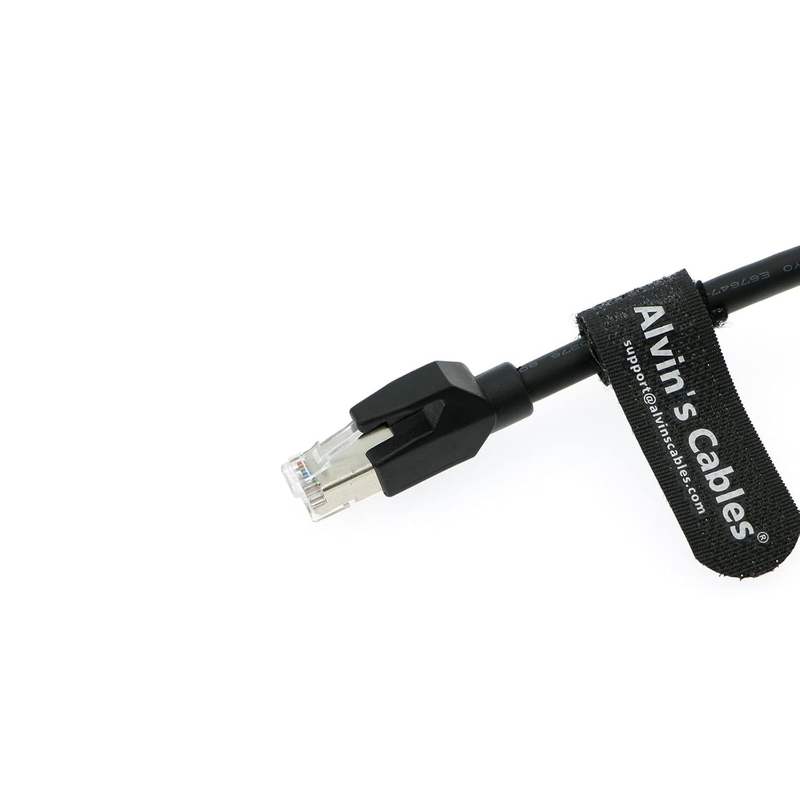

| Plug B: | Straight RJ45 Male | ||
| Highlight: | CAT6a GigE Vision Cable 3m |
||

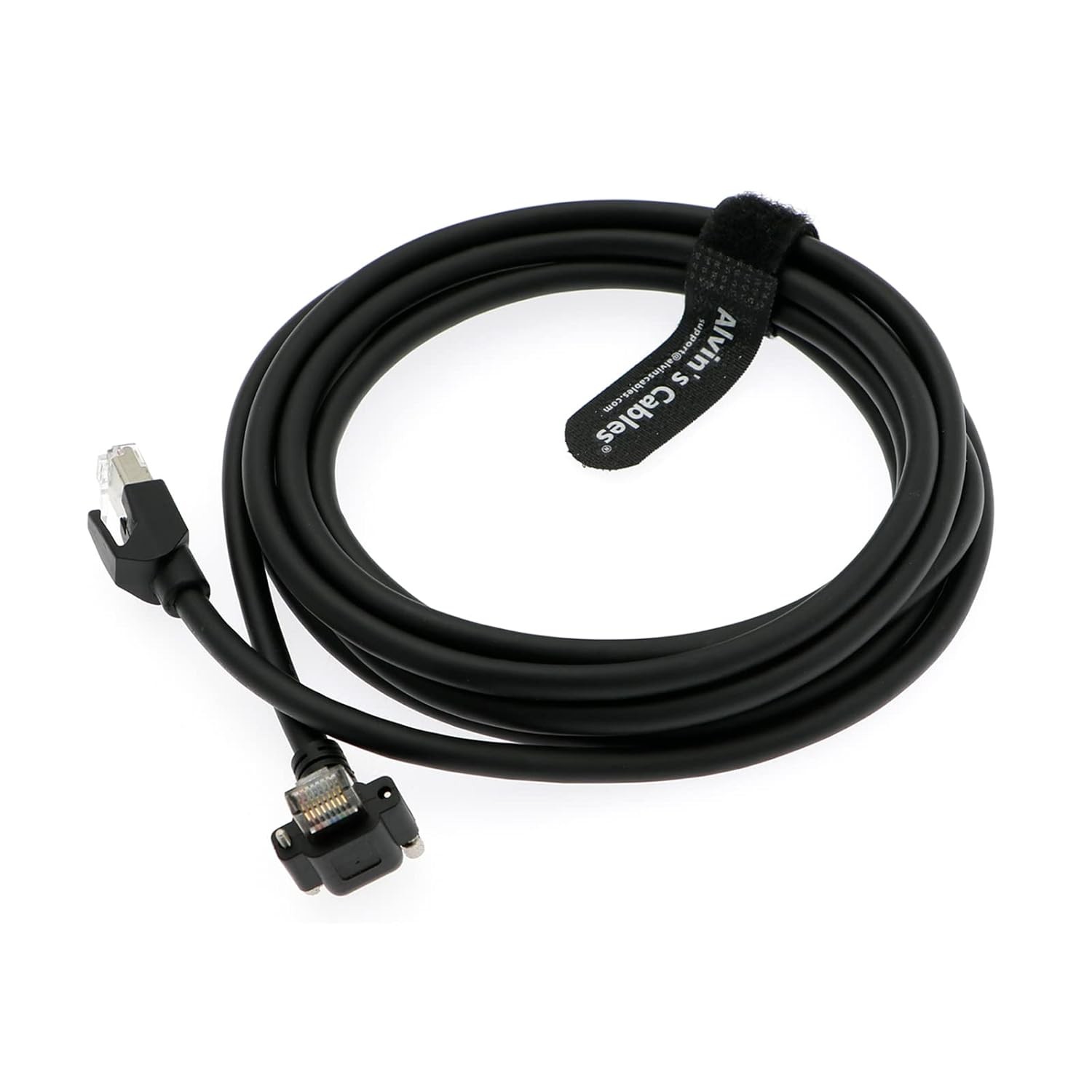

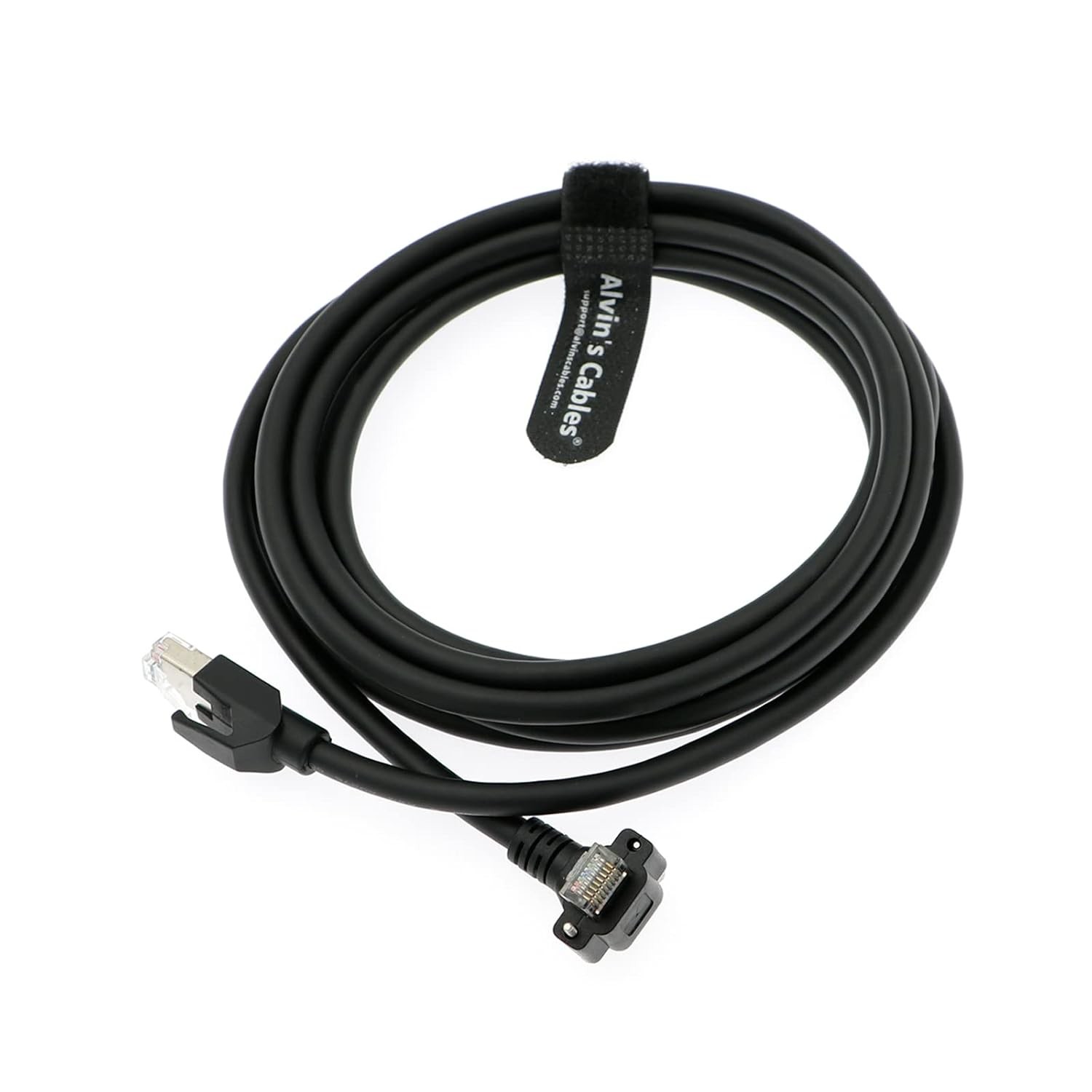

Alvin's Cables Industrial CAT6A GigE Vision Ethernet Cable (3m/9.84ft) - Shielded, High-Flex, Screw-Lock RJ45
Double Shielding (SF/UTP): Aluminum foil + braided mesh for superior EMI/RFI protection in noisy environments

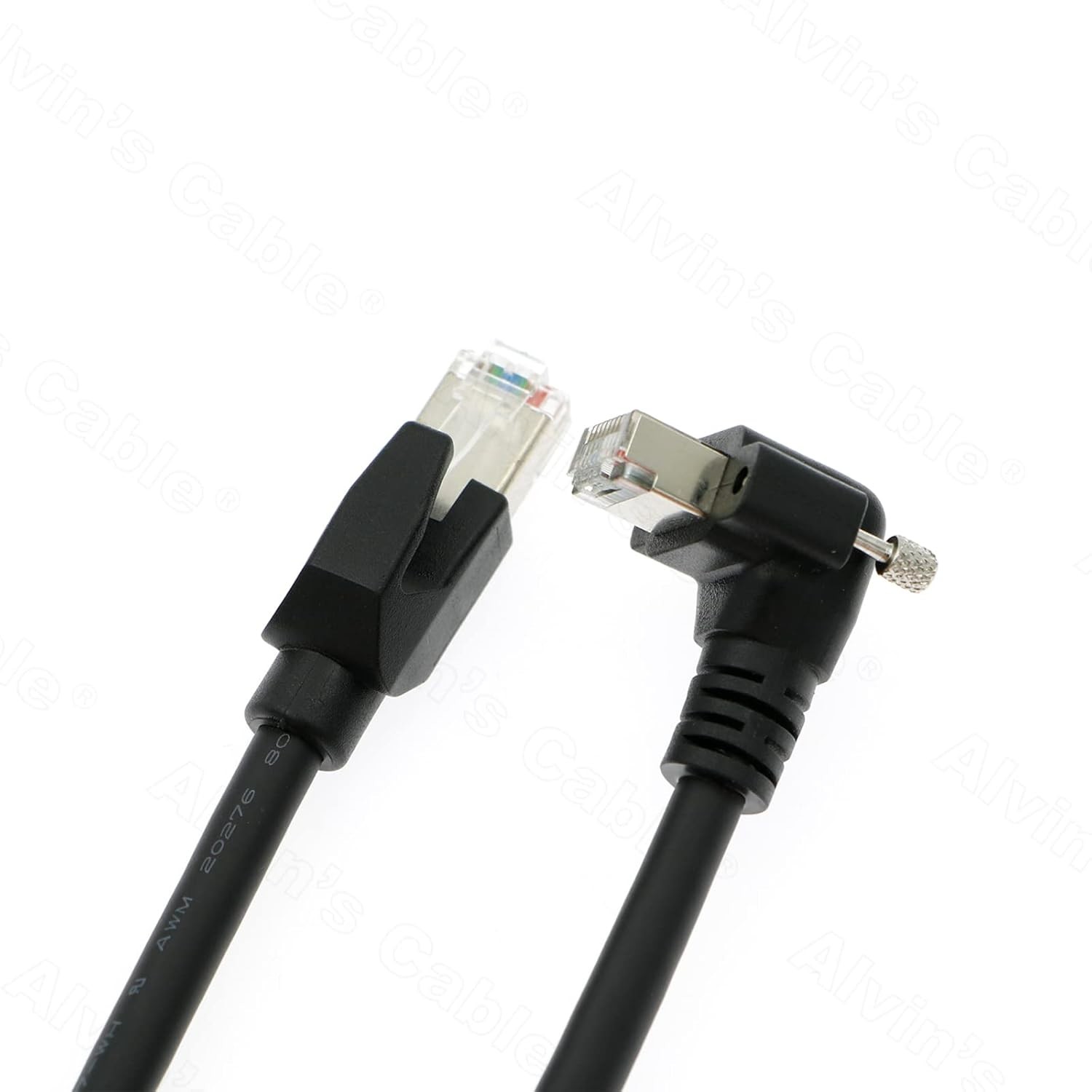

Gold-Plated RJ45 Connectors: Ensures stable 1000Mbps data transmission with low latency
Wide Temperature Range: -25°C to 85°C operation with resistance to oils, chemicals, and flames

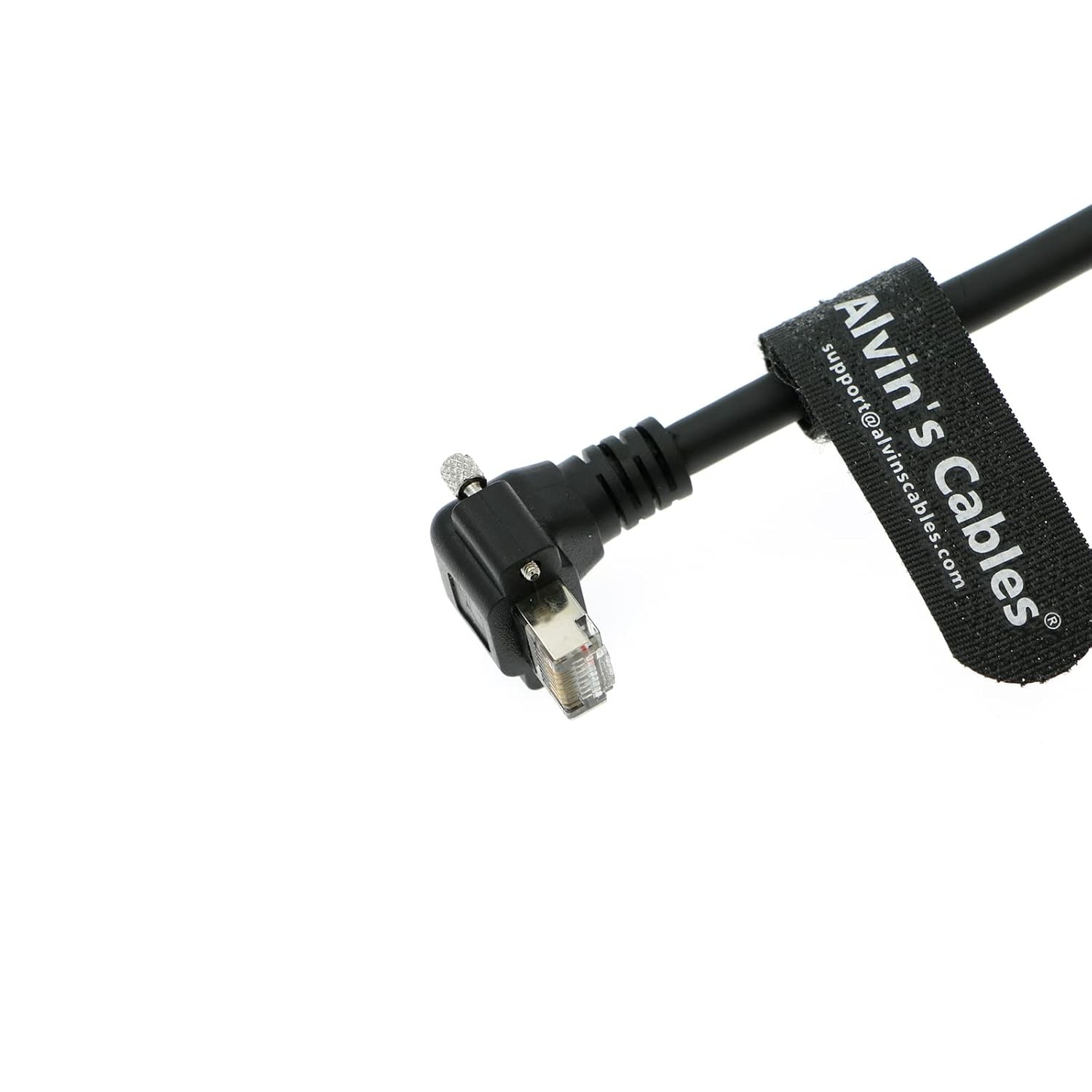

Screw-Locking Up-Angle Connector (Plug A): Prevents disconnection in high-vibration applications
IP67 Rated: Dustproof and waterproof for harsh industrial environments
Withstands 10M+ bending cycles for continuous motion applications
Special insulation maintains flexibility while protecting conductors
| Parameter | Specification |
|---|---|
| Cable Type | CAT6A Shielded (SF/UTP) |
| Connectors | Plug A: Up-angle screw-lock RJ45 |
| Plug B: Straight RJ45 | |
| Length | 3m / 9.84ft (customizable) |
| Data Rate | Up to 1000Mbps |
| Temperature Range | -25°C to +85°C |
| Protection Rating | IP67 |
Vision Systems: Cognex In-Sight, Keyence CV-X, Basler ace, Hikvision, Dahua
Industrial Equipment: PLCs, AGVs, robotic arms, CNC machines
Networking: Data centers, server rooms, PoE applications
Need a different length or connector? Contact us for custom solutions!
Secure Connection: Screw-lock design prevents vibration-induced failures
Longer Service Life: Outperforms standard cables in drag chain applications
Plug-and-Play: Works seamlessly with major machine vision brands
Ideal for: Factory automation, machine vision systems, and harsh environment networking
