| Place of Origin: | China |
|---|---|
| Brand Name: | Alvin's Cables |
| Minimum Order Quantity: | 1/pcs |
| Price: | $9~$35.99 |
| Packaging Details: | Box |
| Delivery Time: | 1~3 business days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000pcs/mouth |
| Plug A: | M12 A-coded 17 Position Female | Plug B: | Open End For DIY Soldering |
|---|---|---|---|
| Cable Length: | 3m/9.84ft | Compatible: | M12 A-Code 17 Pin Female To Open End Power Data Ethernet I/O Cable For HikRobot Datalogic Cognex Camera, High-Flex Drag-Chain Shielded Cable For CAN Bus, PROFINET, Ethernet/IP 9.84ft/3m |
| Highlight: | M12 A Code 17 Pin Cable,9.8ft HikRobot Cognex Cable,M12 17 Pin Cable |
||

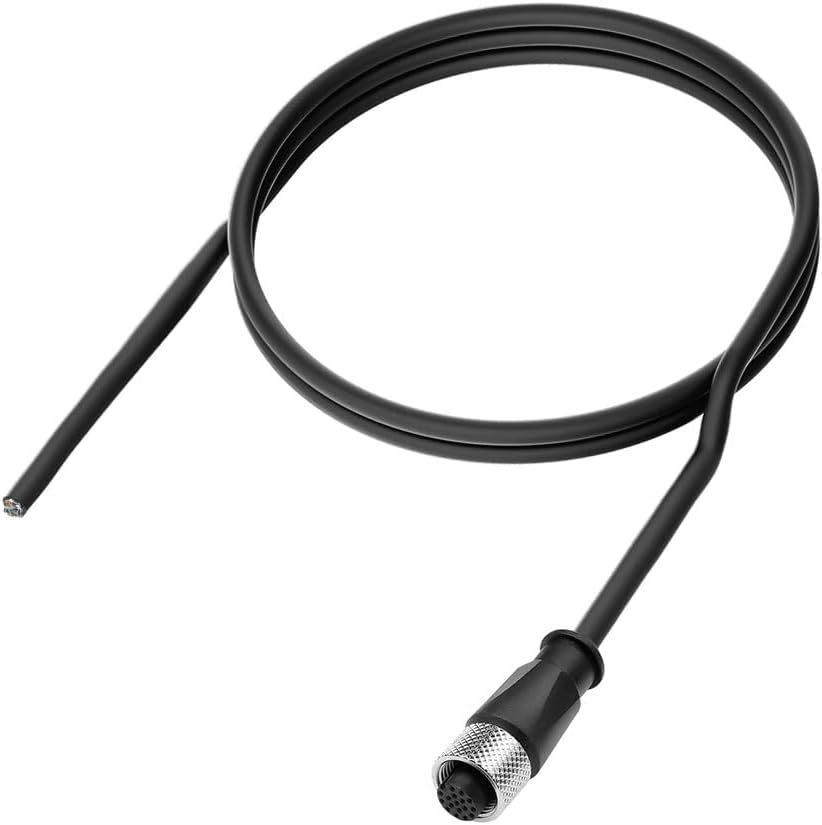

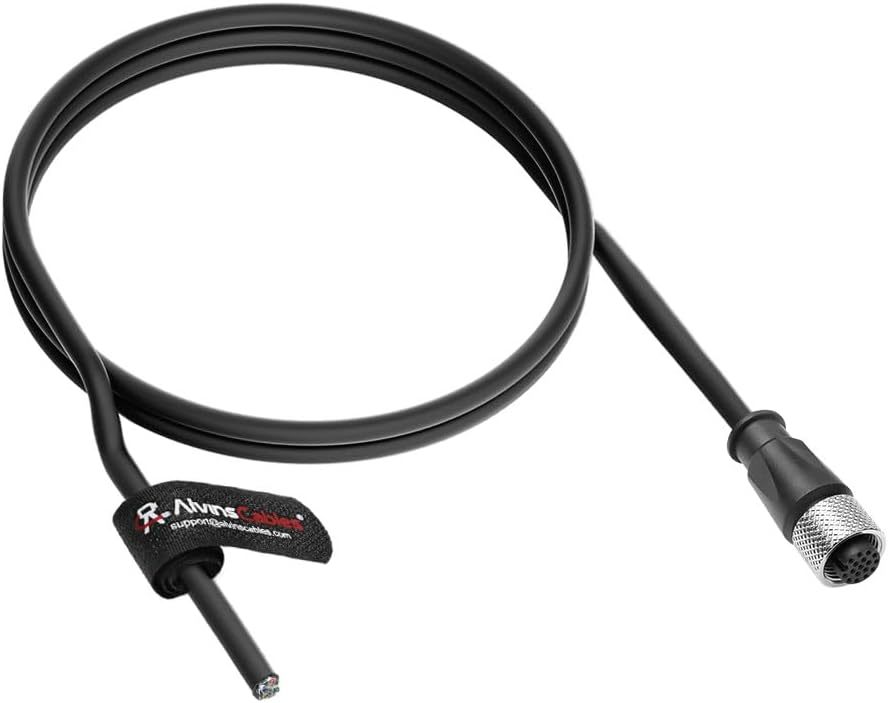

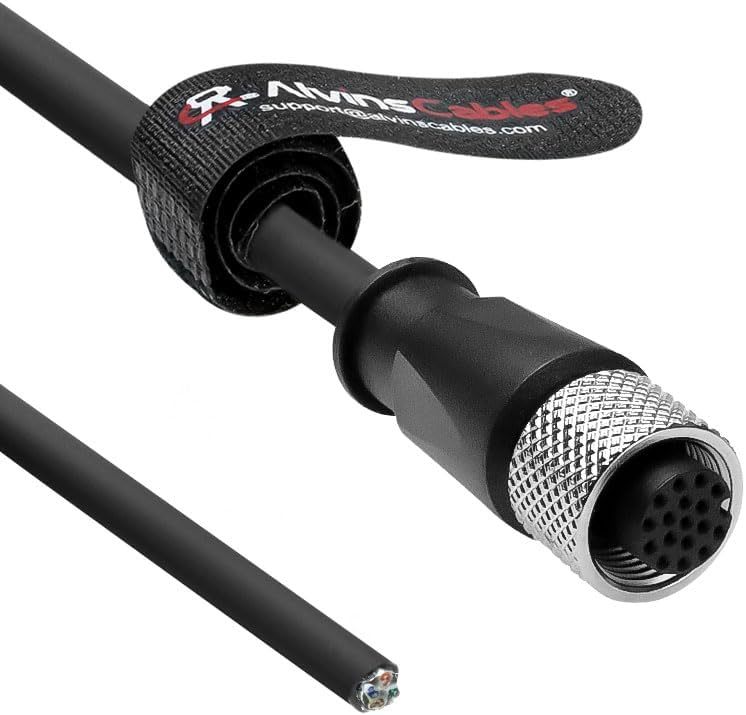

Alvin's Industrial M12 A-Code 17-Pin I/O Cable (9.84ft/3m)
Industrial-Grade Performance
✔ Triple Functionality: Combines power (3×24AWG), data (14×28AWG) and signal transmission
✔ Protocol Support: Ethernet/IP, PROFINET, CAN Bus synchronization
✔ Shielding: Dual-layer (foil + braid) with 95% EMI/RFI protection
✔ Environmental Rating: IP67, -25°C to 85°C operational range
System Compatibility
Vision Systems:
✓ Cognex In-Sight 3D-L4000
✓ SICK InspectorP61x/Ranger3
✓ HikRobot SC3000/ID3000
Industrial Controllers:
✓ Banner Engineering ABR 7000
✓ Datalogic Matrix 410N
✓ Omron FH/FZ Series
Technical Specifications

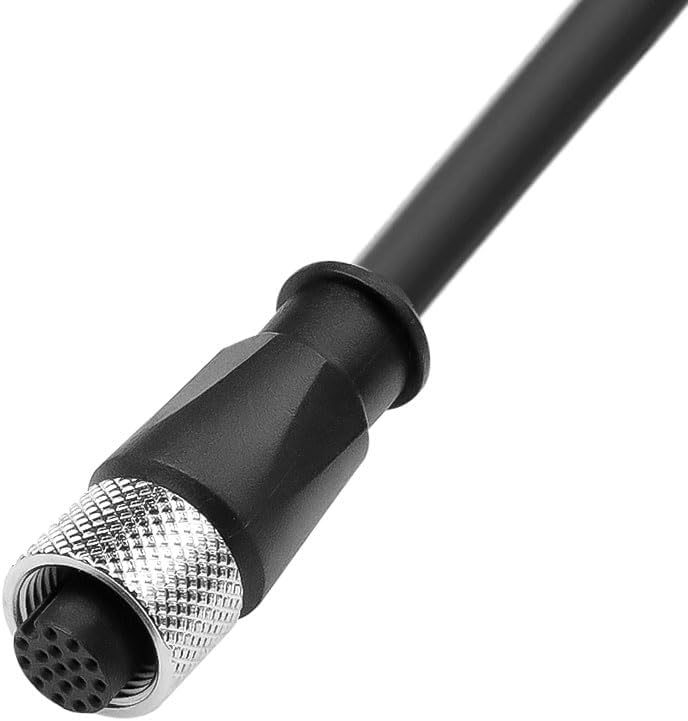

▸ Connector A: M12 A-Code 17-pin Female (Gold-plated)
▸ Connector B: Open end (tinned leads for termination)
▸ Cable Type: Hybrid 14×28AWG + 3×24AWG
▸ Flex Rating: 8M+ cycles (IEC 61034 certified)
▸ Length: 3m/9.84ft
Durability Features
• Vibration Resistance: Thread-locking collar with silicone seal
• Jacket Material: Oil-resistant PUR (UL94 V-0)
• Bend Radius: 7.5× cable diameter
• Pull Strength: 150N sustained load
Ordering Options
[Standard 3m] | [Custom Lengths: 0.5-20m] | [Bulk Discounts]
Key Advantages:
✅ PROFINET Class B - ≤1µs cycle time synchronization
✅ Robust Construction - Withstands 15G vibration
✅ Hybrid Design - Eliminates multiple cable runs
Note: Custom labeling and packaging available for OEM orders.
