| Place of Origin: | China |
|---|---|
| Brand Name: | Alvin's Cables |
| Minimum Order Quantity: | 1/pcs |
| Price: | $9~$71.99 |
| Packaging Details: | Box |
| Delivery Time: | 1~3 business days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000pcs/mouth |
| Plug A: | M12 A-coded 17 Position Female | Plug B: | Open End For DIY Soldering |
|---|---|---|---|
| Cable Length: | 10m/32.8ft | Compatible: | M12 A-Code 17 Pin Female To Open End Power Data Ethernet I/O Cable For HikRobot Datalogic Cognex Camera, High-Flex Drag-Chain Shielded Cable For CAN Bus, PROFINET, Ethernet/IP 3.3ft/1m |
| Highlight: | Cognex HikRobot PROFINET cable,17 Pin M12 A Code Cable,PROFINET Open Cable 10m |
||

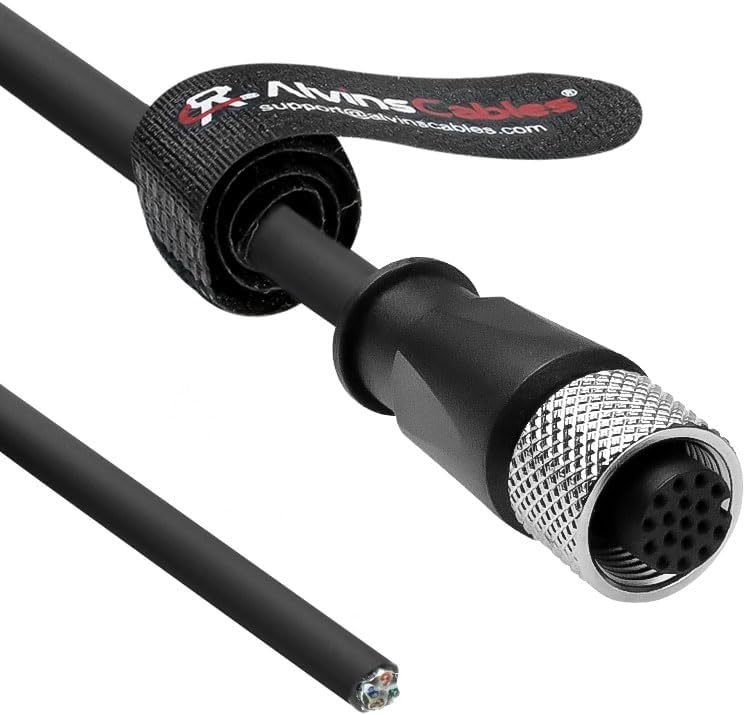

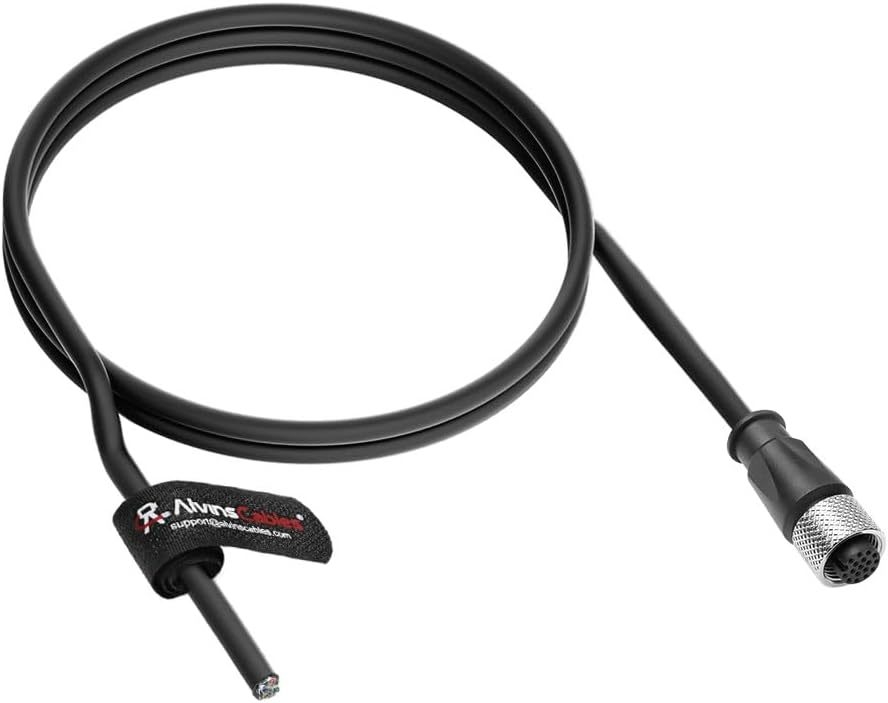

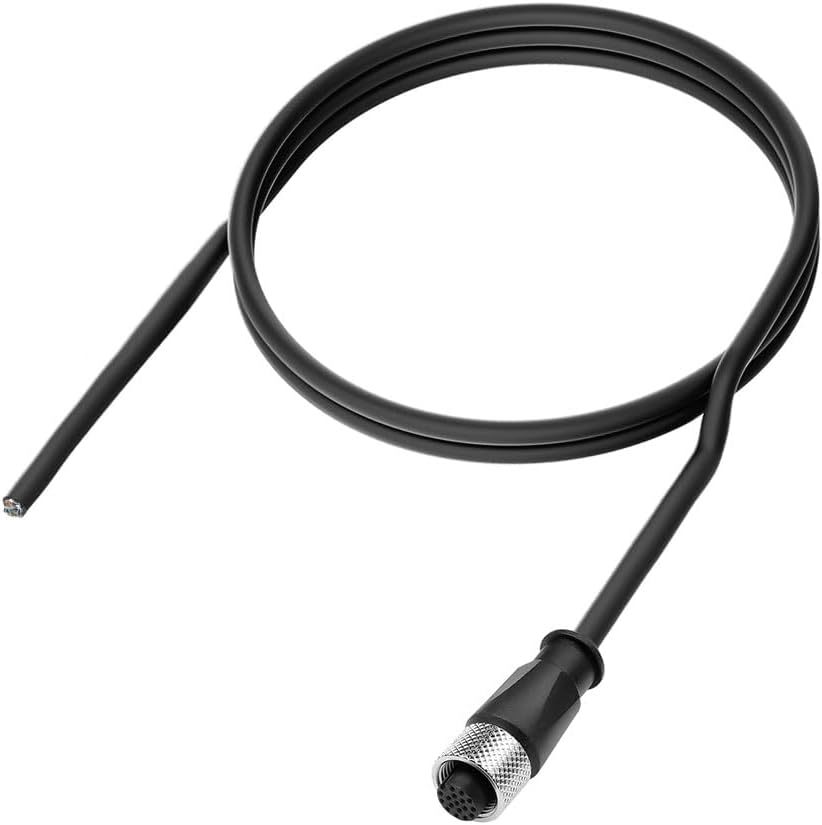

Industrial M12 A-Code 17-Pin Female to Open End Cable - 10m (32.8ft)
Key Features:
✔ Industrial-Grade Performance - Supports power delivery + high-speed data transmission for Ethernet/IP, PROFINET, and CAN bus systems
✔ Wide Device Compatibility - Works with Cognex, SICK, HikRobot, Banner, Datalogic and more
✔ Ultra-Durable Construction - IP67 rated with chemical/flame/oil resistance (-25°C to 85°C)
✔ Premium Signal Integrity - Gold-plated contacts + double shielding (braid+foil) for EMI/RFI protection
✔ High-Flex Design - Drag chain rated for 10+ million bending cycles
Technical Specifications:

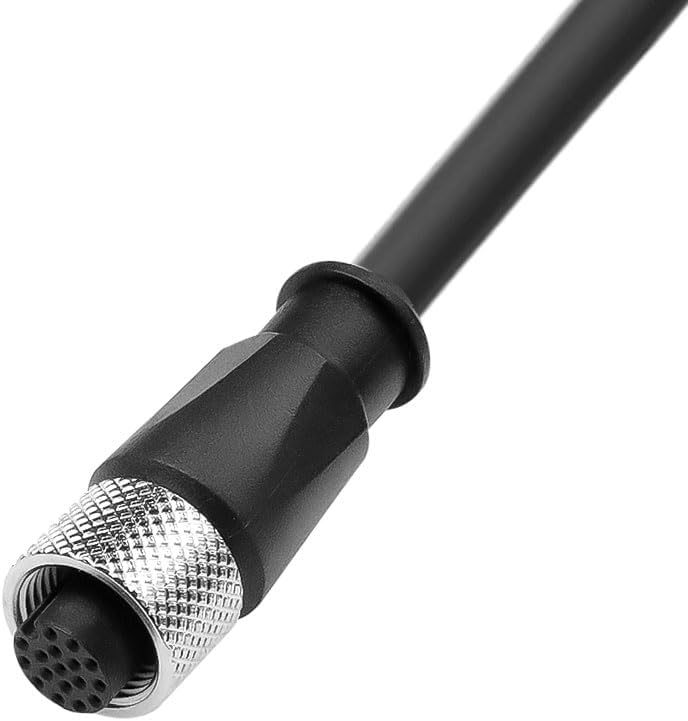

▸ Connector A: M12 A-Code 17-Pin Female (thread-locking, anti-vibration)
▸ Connector B: Open end for custom termination
▸ Cable Length: 10m/32.8ft (custom lengths available)
▸ Conductors: 14×28AWG + 3×24AWG
▸ Shielding: Twisted pair with double-layer braid+foil
▸ Temperature Range: -25°C to +85°C
▸ Jacket Material: High-flex PUR for drag chain use
Compatible With:
• Cognex: In-Sight 3D-L4000
• SICK: Lector/Inspector/Ranger/Ruler/CLV/Visionary-B series
• HikRobot: ID/SC series
• Banner: ABR 3000/7000
• Datalogic: Matrix 410N/320
Industrial Applications:
→ Factory automation systems
→ Robotic arm controls
→ Vision inspection stations
→ PLC and motor controls
→ Industrial IoT networks
Customization Available: Contact us for special length requirements before ordering!
Why Choose This Cable?
✓ Optimized for harsh industrial environments
✓ Maintains signal integrity in high-interference areas
✓ Long service life even with constant movement
✓ Compatible with major industrial brands
