| Place of Origin: | China |
|---|---|
| Brand Name: | Alvin's Cables |
| Minimum Order Quantity: | 1/pcs |
| Price: | $9~$32.99 |
| Packaging Details: | Box |
| Delivery Time: | 1~3 business days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000pcs/mouth |
| Plug A: | M12 A-coded 17 Position Female | Plug B: | Open End For DIY Soldering |
|---|---|---|---|
| Cable Length: | 2m/6.6ft | Compatible: | M12 A-Code 17 Pin Female To Open End Power Data Ethernet I/O Cable For HikRobot Datalogic Cognex Camera, High-Flex Drag-Chain Shielded Cable For CAN Bus, PROFINET, Ethernet/IP 3.3ft/1m |
| Highlight: | Alvin's 1m CAN PROFINET Cable,17 Pin CAN PROFINET Cable,PROFINET Cable 1m |
||

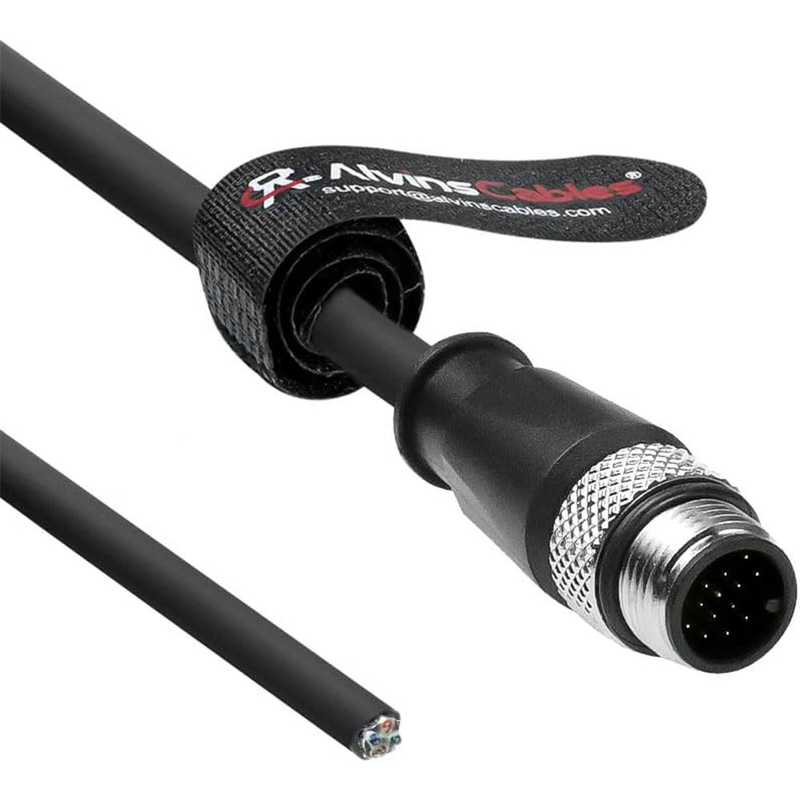

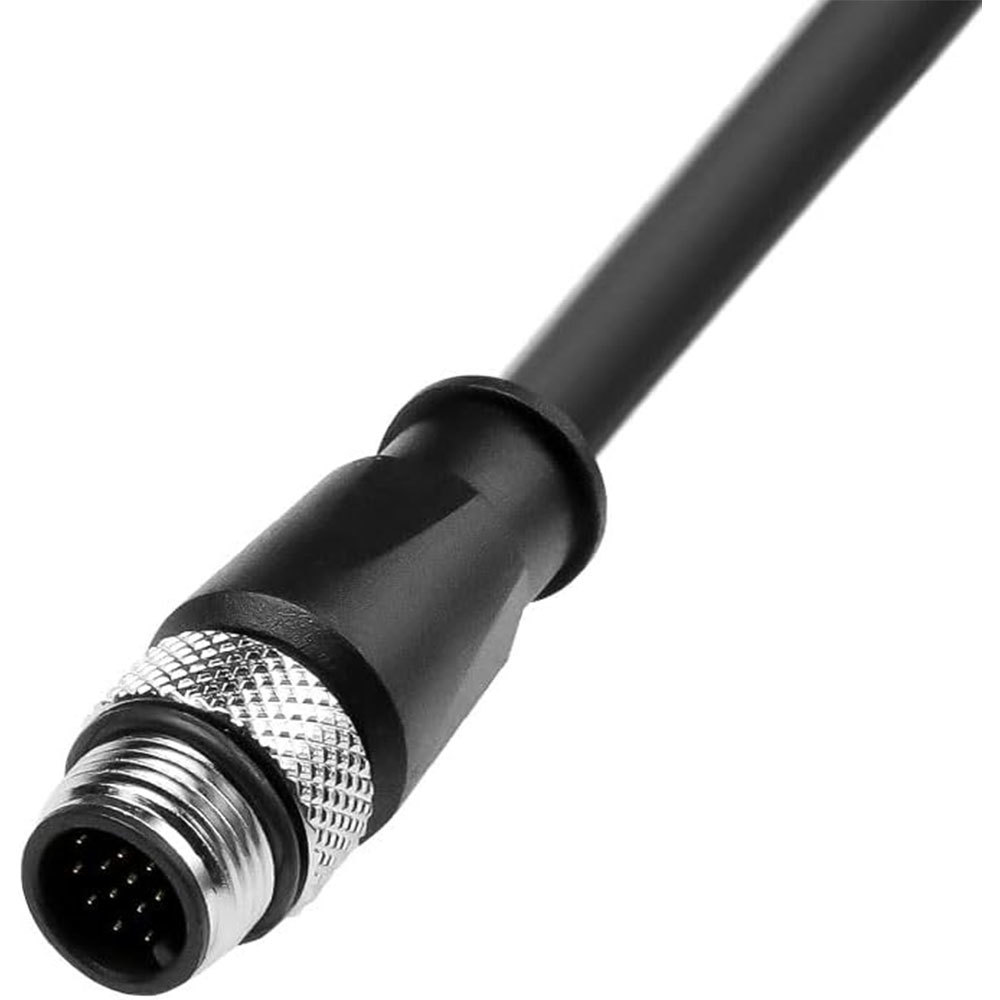

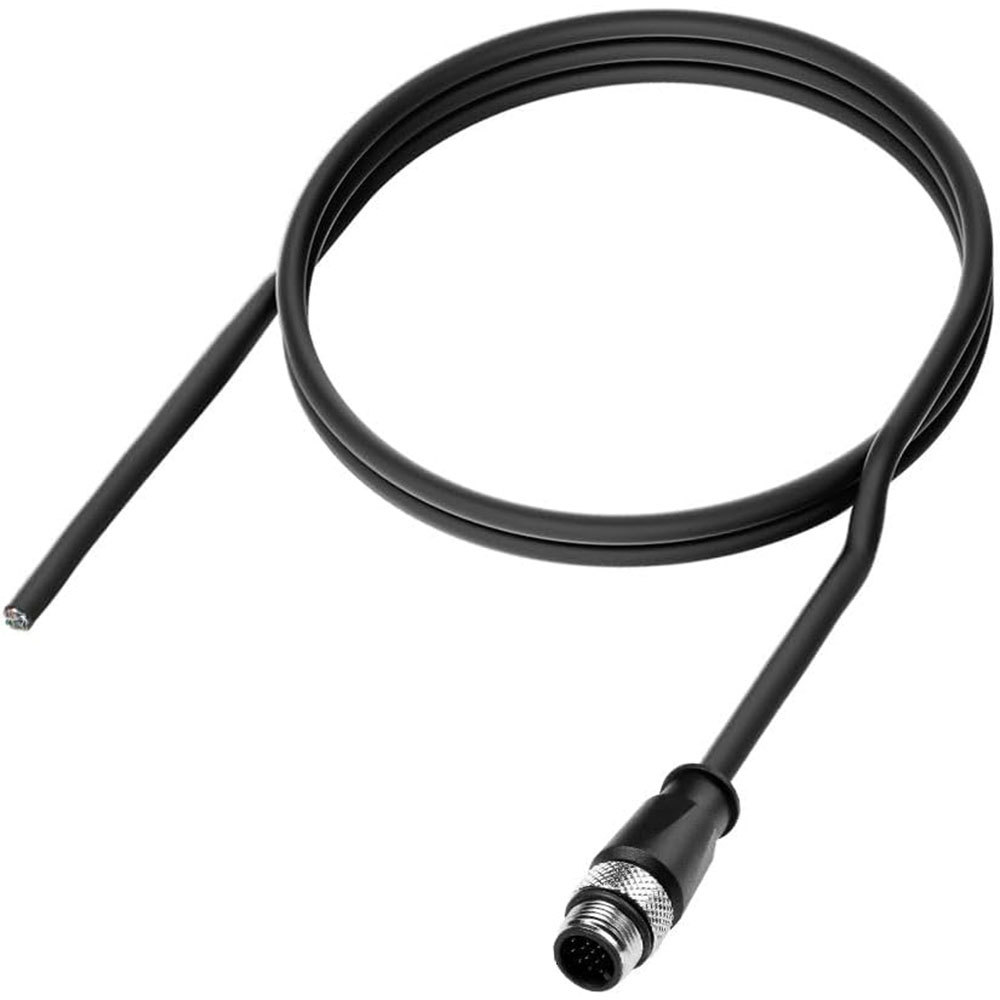

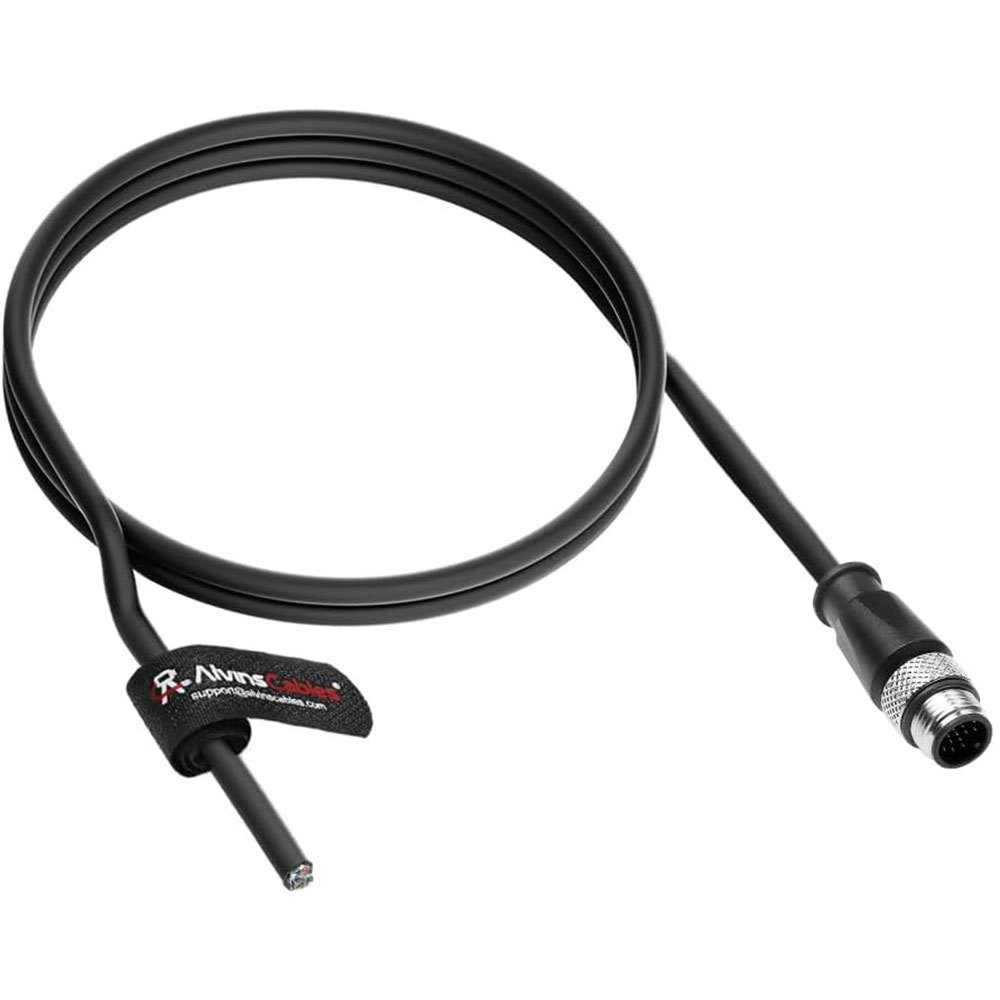

M12 A-Code 17-Pin Male to Open End Servo Cable - 2m (6.6ft)
Industrial-Grade Power & Data Transmission for Motion Control Systems
Core Specifications:
▸ Connectors: M12 A-Code 17-Pin Male (Gold Plated) to Open End
▸ Length: 2m/6.6ft (Custom lengths 0.5-10m available)
▸ Protocols: CAN Bus • PROFINET • Ethernet/IP
▸ Rating: IP67 • -25°C to +85°C
▸ Conductors: 14×28AWG + 3×24AWG
Premium Features:
✔ Military-Grade Protection - Double shielding (braid+foil) against EMI/RFI
✔ Servo-Ready Durability - Withstands 10M+ flex cycles in drag chains
✔ Vibration Resistance - Thread-lock design (5G vibration tested)
✔ Signal Integrity - Gold contacts + twisted pair reduce crosstalk <1%
Technical Validation:
• 100% Hi-pot tested (500VDC)
• Continuity verified pre-shipment
• Insulation resistance >100MΩ
• Mechanical stress tested
Ideal For:
→ Servo motor feedback systems
→ Robotic joint wiring
→ CNC axis drive connections
→ Packaging equipment controls
Compatible With:
• Applied Motion servo systems
• Most industrial servo drives
• PLC motion controllers
Quality Commitment:
"Defective product? Contact us for immediate replacement - no hassle guarantee"
Custom Options:
Alternative lengths
Special shielding configurations
OEM/bulk packaging
